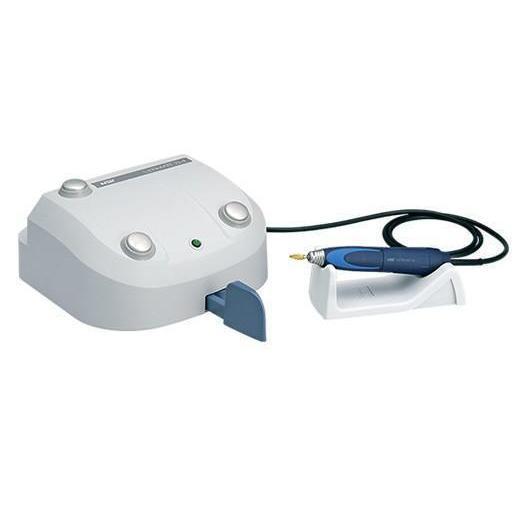

NSK Ultimate XL-F Floor Foot Control System

Powerful and Comfortable

The world's leading laboratory micromotor just got better. The ULTIMATE range has evolved to run even smoother and be more powerful. With 180° vector control system, it assures you to work more efficiently and stress-free. The handpiece shape has been designed extremely carefully with ergonomy and functionality always being at the forefront of the designer's mind.

The result is a handpiece which considerably reduces hand fatigue and makes it easier to work on even the most delicate pieces of work for extended periods of time. Experience the next-generation performance the ULTIMATE XL has to offer.

The ULTIMATE XL-F micromotor comes with an all-in-one floor type control unit. Featuring unparalleled power and performance of ULTIMATE XL series, ULTIMATE XL-F enables all hands-free control by foot pedal, convenient for elaborate laboratory work, also makes more work space on your bench top.

System Includes:

• Control Unit
• Micromotor Handpiece
• Handpiece Stand

Floor Type Foot Control System

• Brushless
• Speed of 1,000~50,000 min-1
• Auto Cruise Function
• Available to connect with an air turbine adaptor

Features

• Ripple-free smooth rotation with 180° vector control system
• Powerful and stable torque across the entire speed range
• Easy-to-hold handpiece design ensures precision
• Ligthweight compact body reduces hand fatigue and improves balance
• Unique dust-proof mechanism prevents contamination therefore achieving higher durability
• Minimal vibration, and noise from hermetically shielded micromotor unit
• Approximately 30% increased chuck strength enables you to work on a wider variety of materials
• Precise control by microcomputer
• User-Friendly design
• Auto Cruise Function
• Audible Function Check
• Easy-to-operate Display Panel
• Digital Speed Display
• Maintenance Mode Setting
• Includes your choice of micromotor
• • Compact

    • Max Torque: 6.0 Ncm

    • Dimensions: L144 x W27 mm

    • Weight: 181g

    • Cord Length: 1.2 m
  • Torque
    • Max Torque: 8.7 Ncm

    • Dimensions: L151 x W29 mm

    • Weight: 219g

    • Cord Length: 1.2 m

Specifications

• Color: Gray/Blue
• Power Supply : AC 120V or 230V 50/60 Hz
• Weight : 3.8 kg
• Dimensions: W230 x D292 x H113 (mm)

* Speed and all other functions are controlled via the foot control.
For safety, maximum speed is preset to 40,000min ^-1.

ULTIMATE XL Product Brochure
