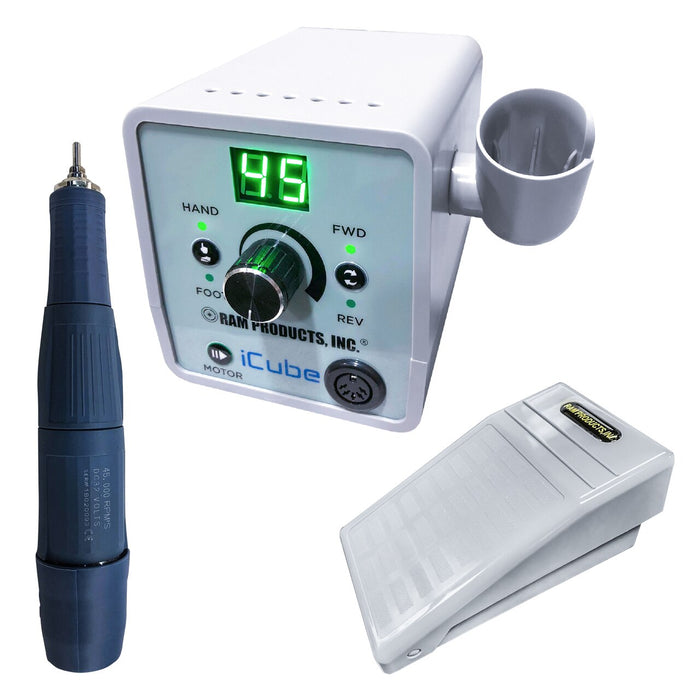

Ram iCUBE 45 Sets

With over 30 years of expertise and amongst a unique handful of the top sellers of micromotors in the entire world, Ram Products proudly introduces iCube as our dream machine chunk full of features and style. Advanced electronics previously found only in higher-end controllers are now included in iCube so no compromising.

iCUBE 45 CONTROL BOX FEATURES:

• Attractive Molded Housing with Handy Right-Sided Handpiece Holder
• Top Cover Conveniently Holds Upto 7 Burs
• 0-45,000 RPM
• LED Functions and Display
• Hand or Foot Control
• Standby Mode for Handpiece Motor
• Forward or Reverse Rotation
• Speed Dial Can Limit Top Speed for Safety
• High Torque
• High Power with Feedback
• Microprocessor Control
• Stylish and Ergonomic
• Touch Panel Buttons for Durability
• Safety Overload Protection

ICUBE 45 CONTROL BOX SPECIFICATIONS:

• Input: AC110V/230V 50HZ-60HZ
• Output: DC 0-32V
• Max Amp: 2A
• Rotate Speed: 0-45,000rpm
• Power: 50W
• Dimension: 5” Length x 4” Width x 4 1/2” Height
• Weight: 3.8lbs.

45000 HANDPIECE FEATURES:

• 45,000 RPM
• Twist Type Release
• Multi-Chuck (Easy to Change Chucks)
• Improved Dust Seals
• Grease Sealed Bearings
• Optional Chuck Sizes: 1/8” or 3mm

45000 HANDPIECE SPECIFICATIONS:

• Torque: 4.5 Ncm
• Size: 6.16” x 1.2”
• Net Weight: 8oz.

ON/OFF FOOT PEDAL FEATURES:

• This foot pedal accessory will allow the user to turn the handpiece on/off as set

ON/OFF FOOT PEDAL SPECIFICATIONS:

• 4” Length x 2 1/2” Width x 11/4” Height

VARIABLE FOOT PEDAL FEATURES:

• This foot pedal will allow the user to adjust or vary the speed

VARIABLE FOOT PEDAL SPECIFICATIONS:

• 6.75” Length x 4” Width x 2.75” Height
